Documentation

Welcome to Sundy — a robust, ultra-secure privacy system for people who need more than ordinary encryption. Sundy combines AES-256 protection, unlimited independent passwords, self-healing storage, and plausible-deniability carriers that leave no trace of what — or how much — you keep.

Installation

macOS Installation

1. Download the latest Sundy-<version>.pkg installer from the official website
2. Run the installer and follow the prompts (Sundy is installed to /Applications)
3. Launch Sundy once from Applications
4. Enable the bundled file-system extension: System Settings → General → Login Items & Extensions → File System Extensions → Sundy Extension

License Activation

After purchase, you'll receive a license key. To activate:

1. Open Sundy and go to the "About" tab
2. Copy your Machine ID and use it during purchase
3. Paste the received license key in the activation field
4. Click "Activate" to enable full functionality

System Requirements

• macOS: 26.0 or later on Apple Silicon (arm64)
• Additional software: None — Sundy includes its own FSKit extension; macFUSE, third-party kernel extensions, and reduced macOS security settings are not required
• Storage: Space for your encrypted storage file, directory, or audio carrier
• RAM: 4 GB minimum (8 GB recommended)

Quick Start

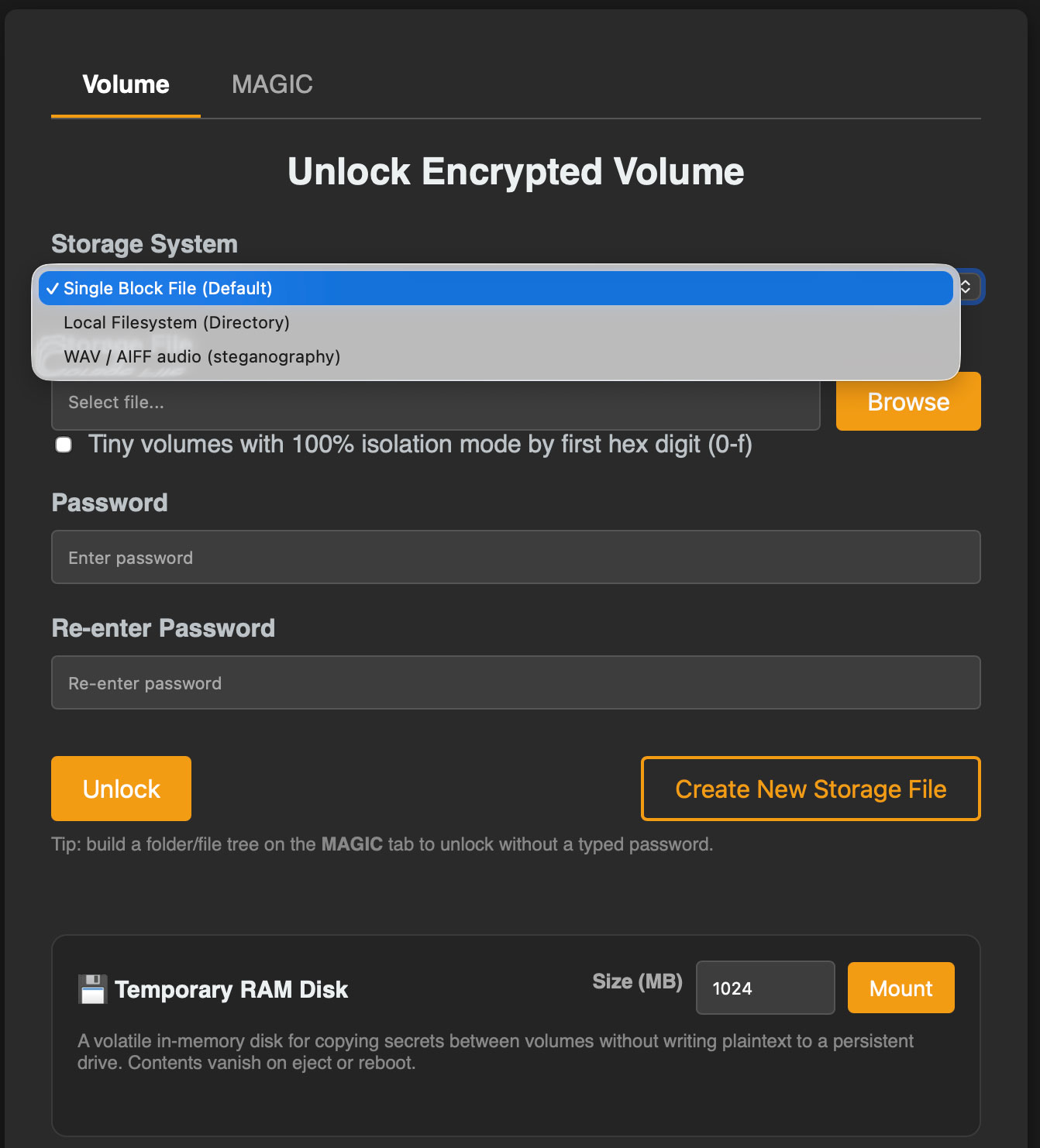

Creating Your First Encrypted Storage

1. Launch Sundy
2. Click Create New Storage File
3. Under Storage System, choose Single Block File (Default), Local Filesystem (Directory), or WAV / AIFF audio (steganography) (see Storage Backends)
4. Set New Volume Path, then set Disk Size (MB) for block-file and directory storage
5. For WAV/AIFF carriers, choose WAV noise depth K (remember it — needed to unlock) and write down the K value with your password
6. Click Create

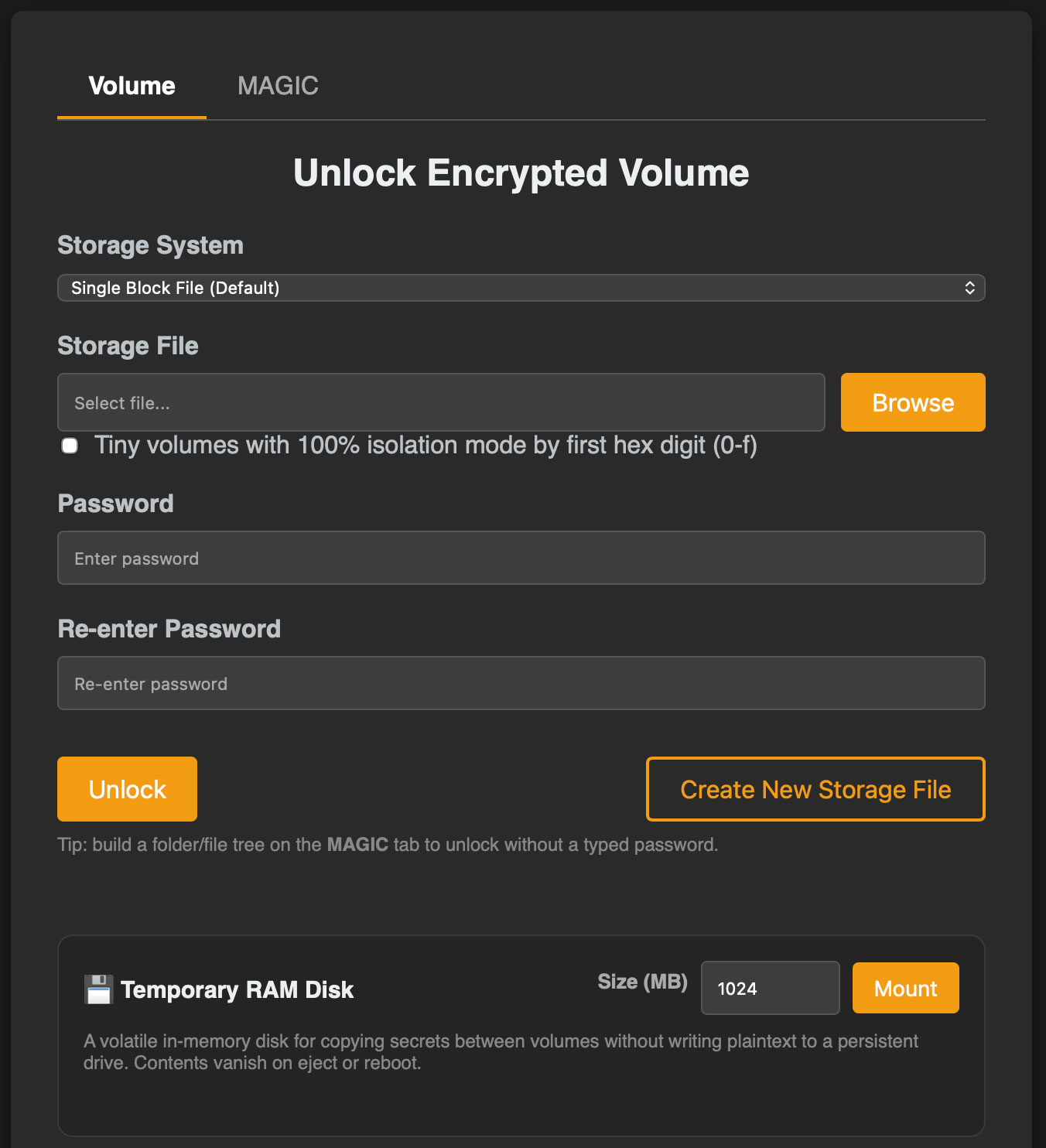

Unlocking & Mounting Your Storage

1. Open Sundy and choose the matching Storage System
2. Select or drag in your Storage File (or carrier/config, depending on the storage system)
3. For block files, choose whether to enable Tiny volumes with 100% isolation mode by first hex digit (0-f) based on the volume layout you want to open
4. For WAV/AIFF carriers, set WAV noise depth (must match how the carrier was created) to the same K value used during creation
5. Enter any password and click Unlock — this opens the vault and makes the 2FA and password/notes managers immediately available
6. Click Mount drive only when you need the encrypted disk in Finder
7. A new disk appears in Finder, ready to use like any other drive

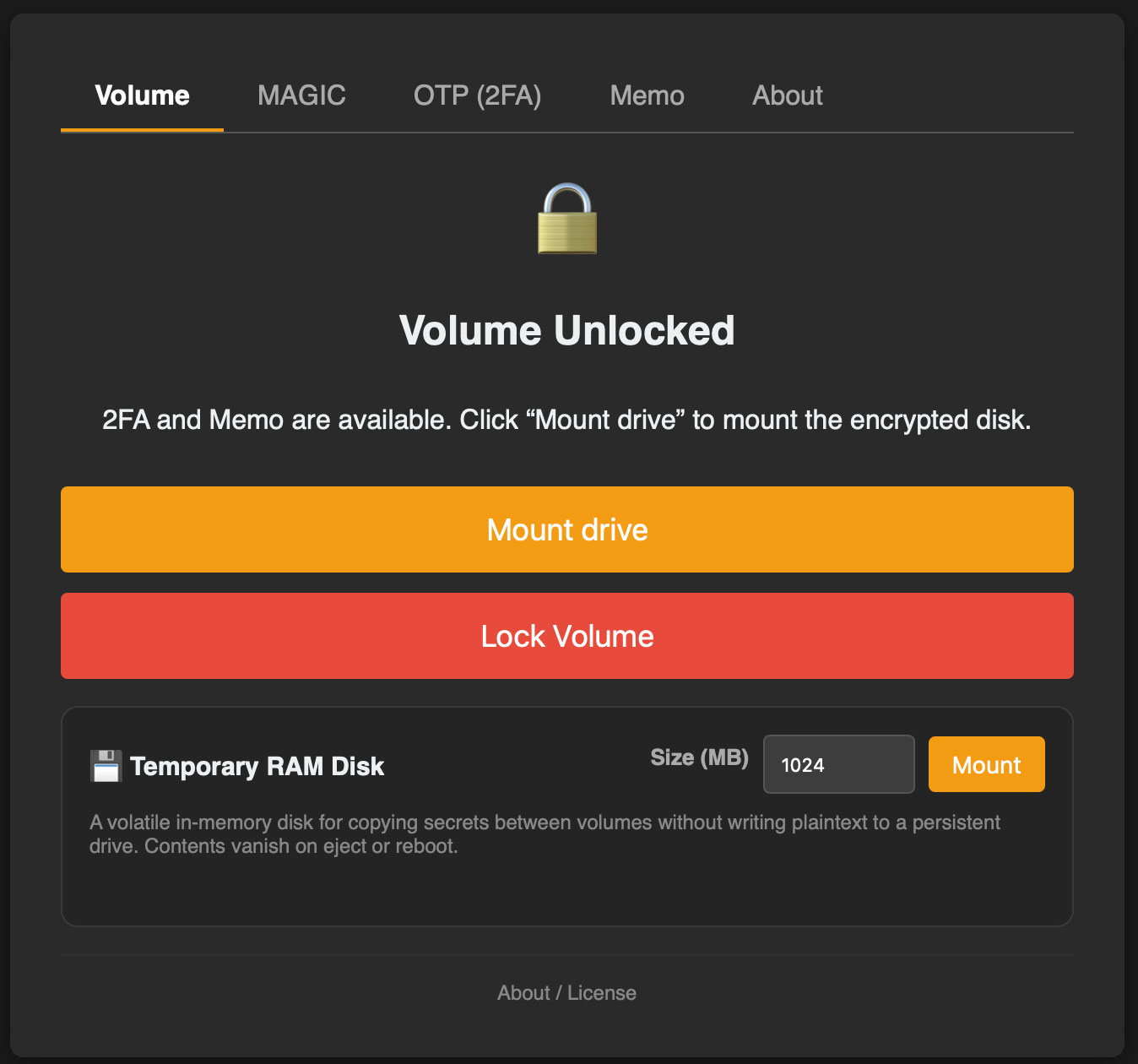

Unlock vs. Mount

Opening a vault and mounting a disk are two separate steps:

• Unlock opens the vault and derives the key. The 2FA vault and the password/notes manager become immediately usable. Nothing is mounted, and no disk image is attached.
• Mount drive exposes the encrypted disk in Finder. Do this only when you actually need to browse files.

This keeps the disk image unmounted (and your footprint smaller) when you only need quick access to a TOTP code or a stored password.

Multi-Password System

Sundy's revolutionary multi-password system allows unlimited passwords per storage file. Each password opens a completely separate vault with its own files.

How It Works

When you enter a password, Sundy derives an encryption key using PBKDF2-HMAC-SHA256 with 5,000,000 iterations (≈2–3 seconds on a modern Mac), salted with random entropy stored in the volume. That key both decrypts your data and mathematically determines which clusters in the storage file belong to your vault — there is no allocation table to read. Different passwords = different keys = different cluster locations = different data.

Plausible Deniability

There is no way to determine how many passwords (vaults) exist within a storage file. The entire file appears as random data, with no headers or markers. Even if forced to reveal a password, you can provide one that opens an innocent decoy vault — an adversary can only ever see what the password you give them unlocks, and cannot prove that anything else exists.

Password → Bucket Map (Gen3)

In the Gen3 block-file layout (and in WAV/AIFF steganography), each password is assigned one of 16 buckets numbered 0 through 15. The bucket is derived from the password's first character only — not from the full string. Passwords that land in the same bucket share the same storage region; different buckets are disjoint, so one vault cannot corrupt another.

Sundy applies these rules in order:

1. Empty password → bucket 0.
2. All-hex password — if every character is a hex digit (0-9, a-f, A-F) — the bucket is the numeric value of the first hex digit (0–15). This is how MAGIC Unlock hashes spread uniformly across all 16 buckets.
3. Otherwise — look up the first character in the dictionary below. If it is not listed, use the character's low 4 bits (byte & 0x0F).

Latin alphabet (a–z, A–Z)

Upper- and lower-case letters map to the same bucket. Letters q–z wrap and reuse buckets 0–9 (note the non-alphabetic order for x, y, z).

Symbols with fixed mappings

All-hex passwords (first digit → bucket)

When the entire password string is hexadecimal, the first character alone selects the bucket by its numeric value:

Fallback (any other first character)

Characters not in the tables above — digits in a mixed password, spaces, punctuation, Unicode, etc. — use the ASCII byte's low four bits (char & 0x0F). Examples:

• 0digit → '0' (ASCII 48) → low nibble → bucket 0
• 5xyz → '5' (ASCII 53) → low nibble → bucket 5
• %secret → '%' (ASCII 37) → low nibble → bucket 5

Storage Backends

Sundy can hide your encrypted vaults in three different kinds of carrier. All three support the multi-password model.

Block File (Recommended)

All encrypted data lives in a single pre-allocated file that looks like pure random noise. Each logical block is written to 16 redundant copies (Gen3 layout) or 32 copies (Flat-32 compatibility layout), so the volume survives corruption and bit-rot. Benefits:

• Easy to back up and move — it's just one file
• Indistinguishable from random data
• Built-in redundancy and on-read self-healing
• Gen3 buckets give different passwords disjoint storage regions, so vaults can never corrupt one another (see Password → Bucket Map)

Directory Storage

Encrypted blocks are stored as individual files inside a directory tree (filenames are themselves hashed). Benefits:

• Better for cloud sync — only changed blocks need to re-upload
• Works naturally with file-level backup systems
• Optional gzip compression before encryption

Audio Carrier (WAV / AIFF Steganography)

An audio carrier is a normal lossless song file that also holds encrypted Sundy storage. Sundy uses the least-significant bits of each PCM audio sample — the tiny natural-looking noise area at the bottom of the waveform — and fills that space with encrypted vault data. To a listener or analyzer the file still looks and sounds like ordinary audio noise, with no Sundy header, marker, or visible storage map.

The audio still plays normally, but the low-bit noise floor becomes a hidden key-value store for your 2FA vault, Memo records, passwords, notes, and optional mountable disk.

Creating an Audio Carrier

1. In Create New Storage File, choose WAV / AIFF audio (steganography)
2. Select an existing PCM WAV/AIFF file, or a compressed source (MP3, FLAC, MP4/M4A, AAC) which Sundy converts to a lossless WAV first
3. Pick a noise depth K — higher K means more capacity but slightly more audible hiss
4. Create — the selected low-bit noise floor becomes super-hidden encrypted storage, ready to hold your vault

Encryption & Integrity

Sundy uses well-established, openly documented cryptographic algorithms:

• AES-256-CTR for all data encryption
• PBKDF2-HMAC-SHA256 with 5,000,000 iterations for password-to-key derivation
• SHA-512 / SHA-256 for deriving each block's storage location
• HMAC-SHA256 ("authenticated clusters") to detect tampering and bit-rot on every read

A Fresh IV for Every Copy

Each redundant copy of a block is encrypted independently with its own random initialization vector. That means identical data never produces identical ciphertext on disk — an observer cannot tell which clusters are in use, preserving deniability.

Authenticated Clusters

Every cluster carries a keyed HMAC-SHA256 tag derived from your master key. On read, the tag is verified, so silent corruption or deliberate tampering is detected and the next good copy is used instead. The integrity key is independent of the AES key and is never written to disk.

No Signatures

Unlike other encryption tools, Sundy files contain zero identifying markers. No headers, no magic bytes, no metadata. To forensic analysis, your storage file is indistinguishable from random noise.

Memory Hygiene

Derived keys are held as raw byte buffers (not Go strings) and wiped when you lock a volume. Decrypted data cached in memory is zeroed on lock, so plaintext does not linger after the vault is closed.

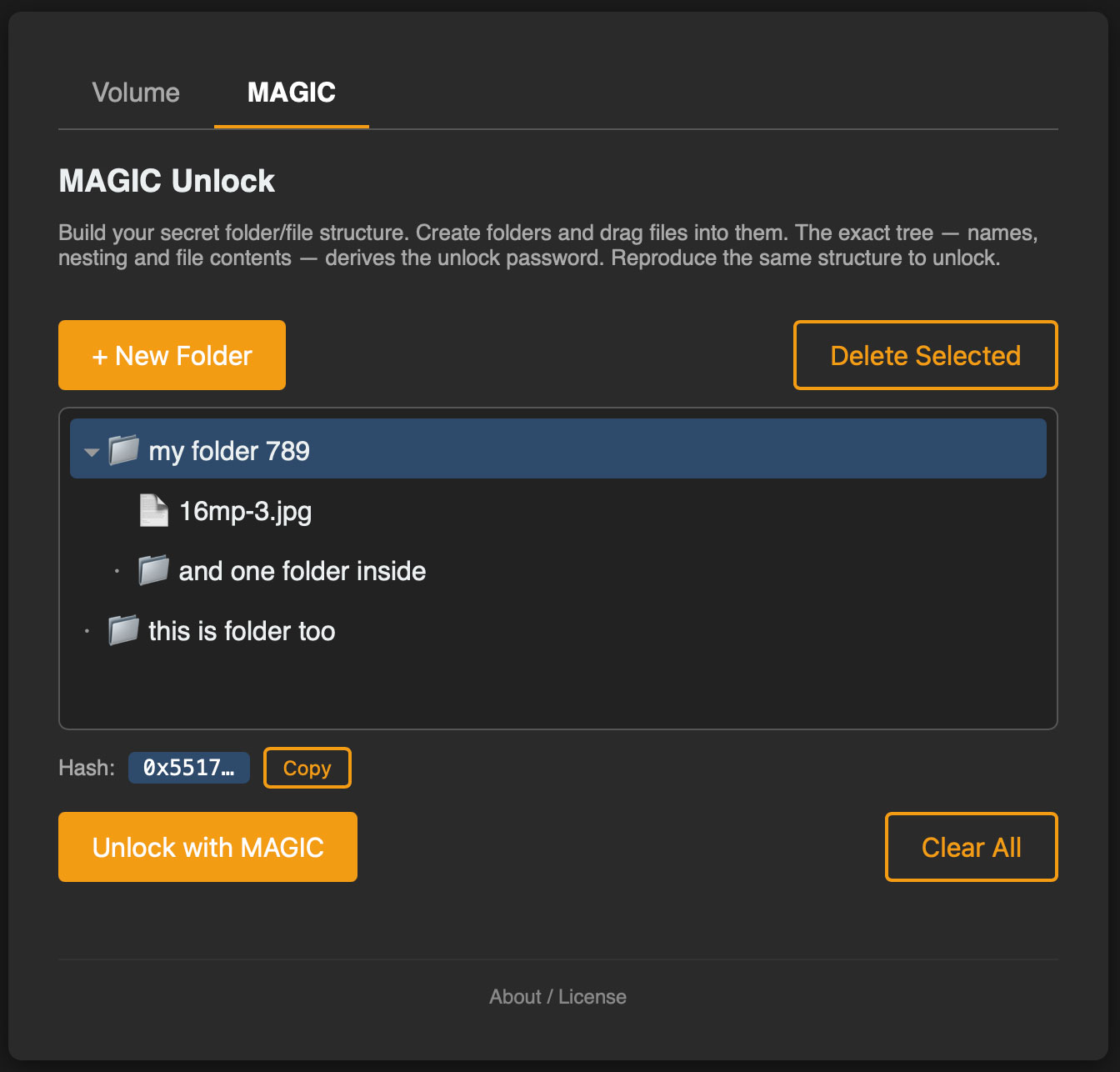

MAGIC Unlock

MAGIC Unlock lets you unlock a vault with a structure of folders and files instead of a typed password.

How It Works

1. Open the MAGIC tab on the unlock screen
2. Build a secret tree in the Finder-style view — create folders and drag in files from Finder
3. Click Unlock with MAGIC
4. Sundy hashes the exact tree — folder names, nesting, file names, and file contents — into a 256-bit key and uses it as your password

To unlock again you simply rebuild the same tree. The order of items doesn't matter (entries are name-sorted) and hidden files (names starting with .) are ignored, but even a one-byte change to any file produces a completely different key.

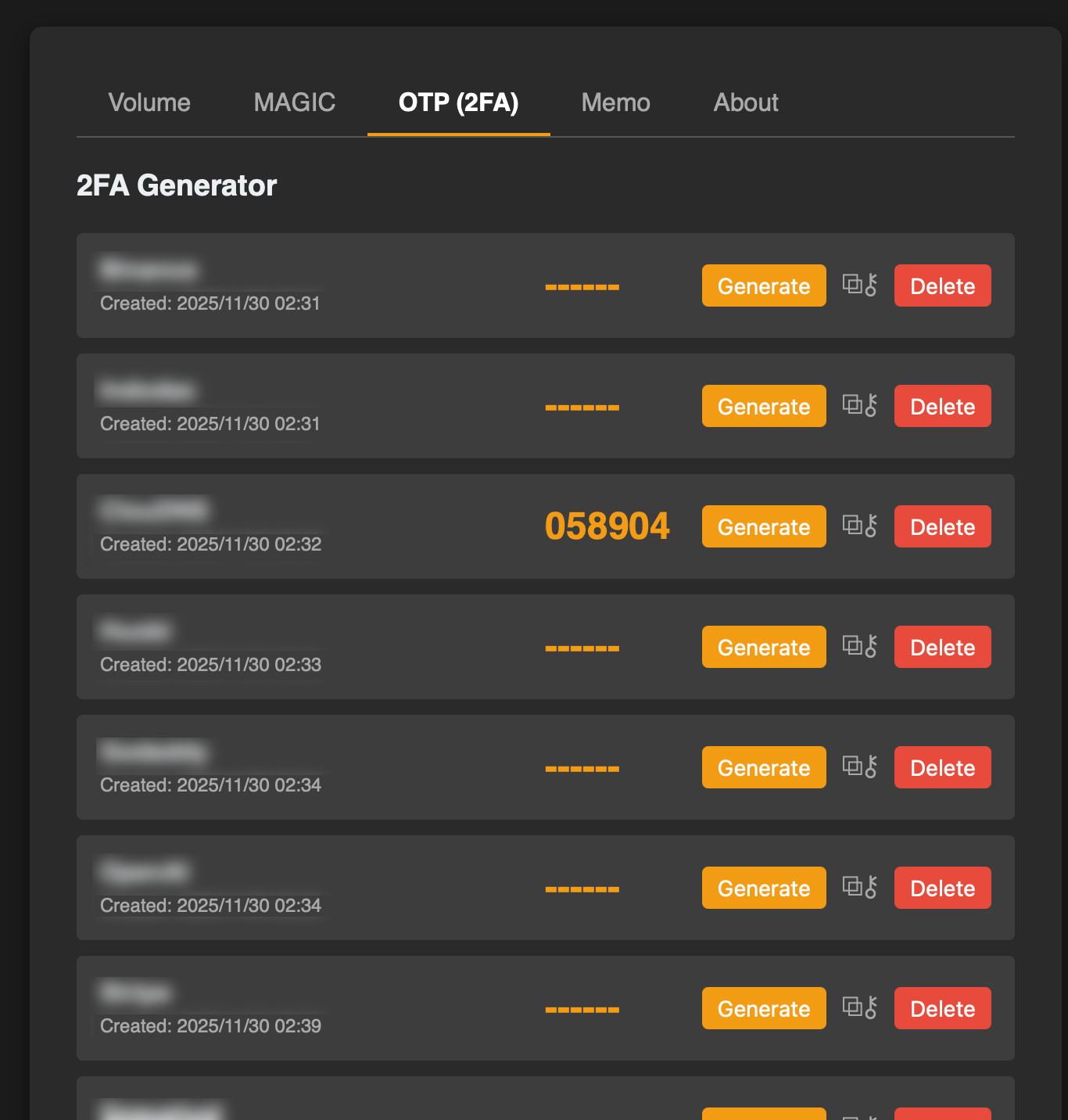

2FA Vault

Store your TOTP (Time-based One-Time Password) secrets securely within your encrypted vault.

Security Model

Unlike phone authenticator apps that keep secrets in memory, Sundy's 2FA vault:

1. Decrypts the secret only when generating a code
2. Generates the TOTP code
3. Immediately destroys the secret from memory

This is the most secure way to use 2FA on a computer — secrets never persist in memory.

Adding 2FA Accounts

1. Unlock your vault
2. Go to the "OTP" tab
3. Enter the account name and secret key
4. Click "Add" to save

Codes are generated with the standard RFC 4226 / RFC 6238 TOTP algorithm, compatible with Google Authenticator, Authy, and similar apps. Secrets can be entered in base32 (the most common), base64, hex, or plain utf8 encoding.

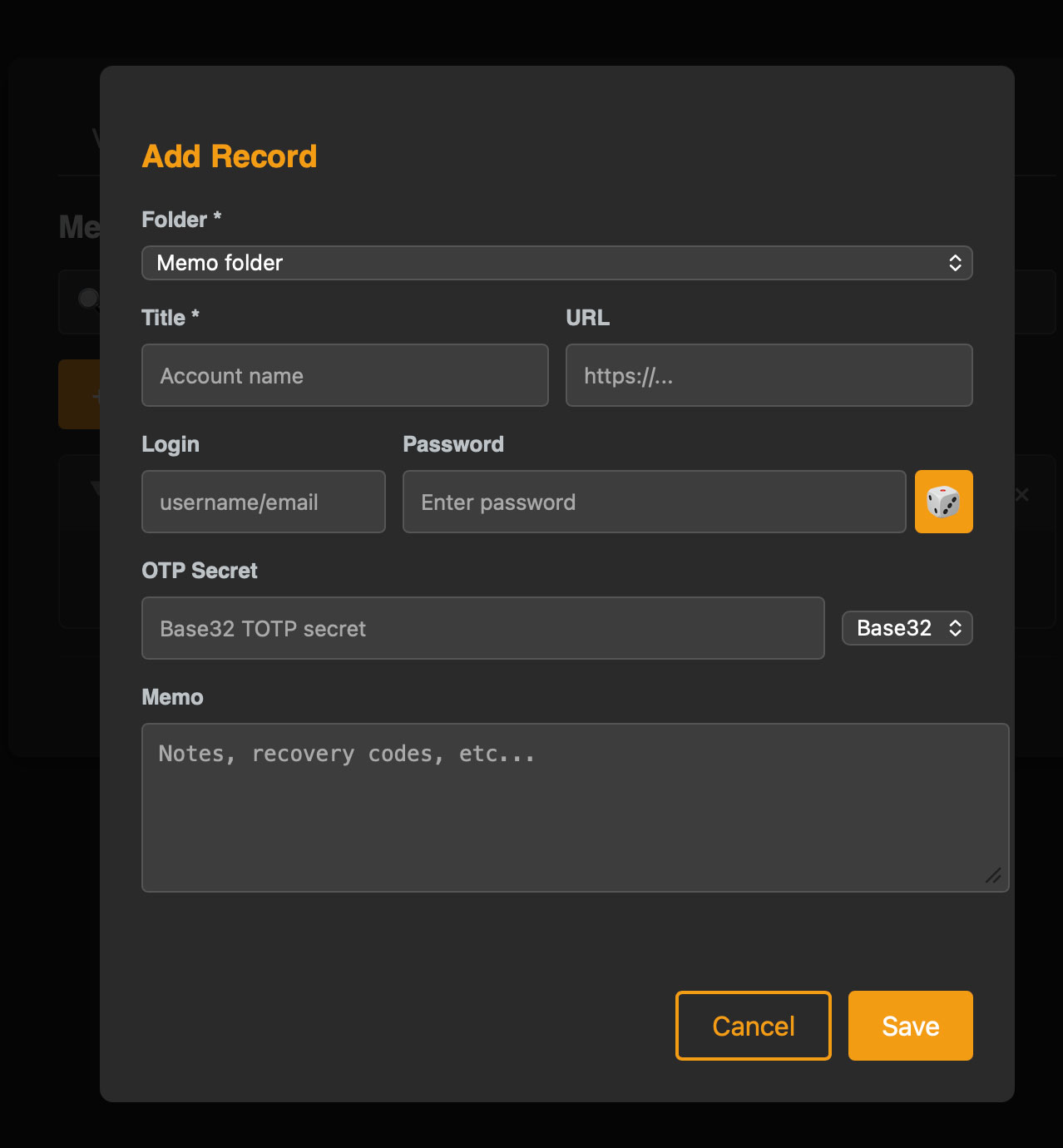

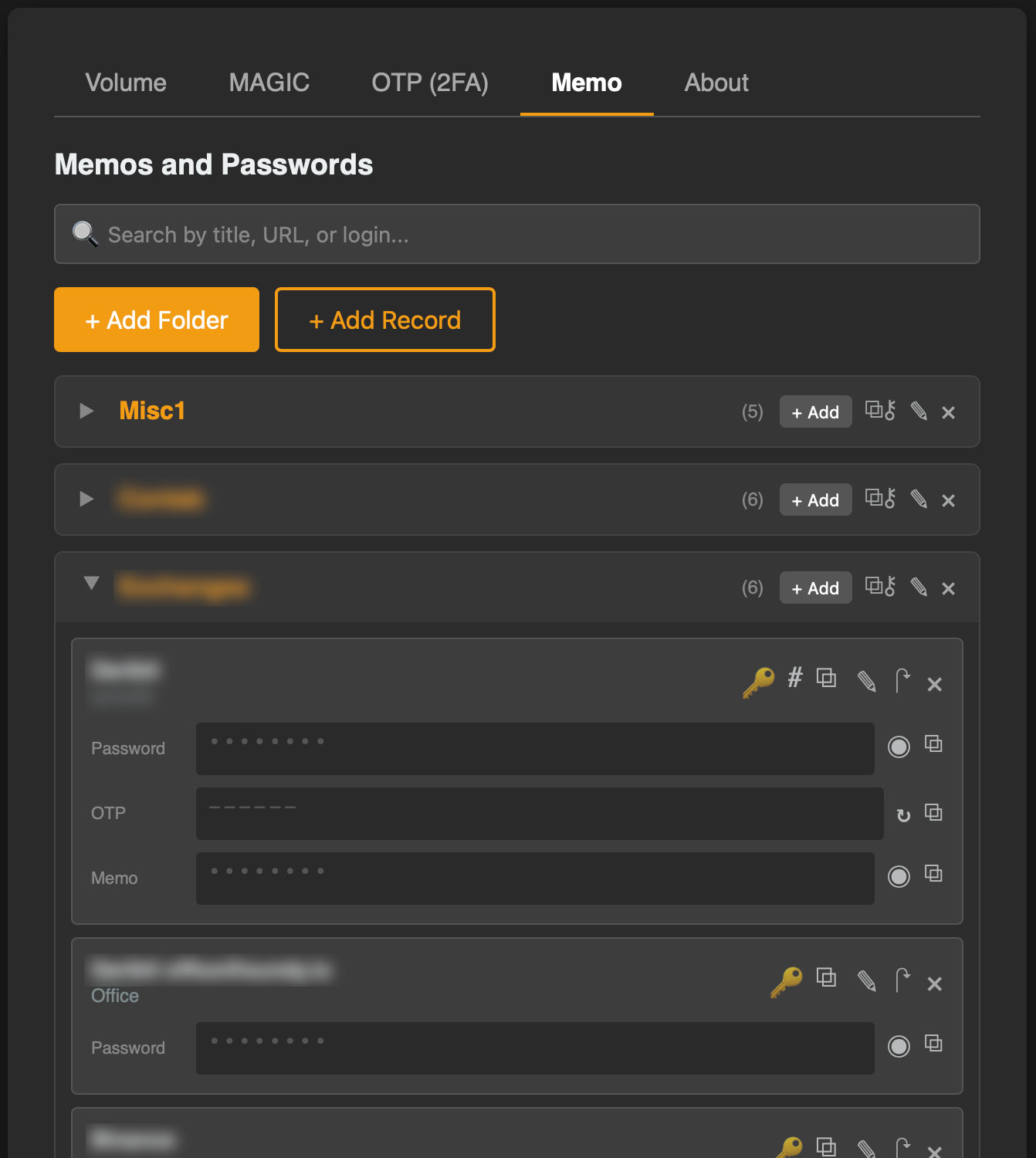

Passwords & Notes

Beyond 2FA, each vault includes a built-in manager for passwords and secure notes (the "Memo" feature). Records are organized into folders, and every secret is encrypted with the same vault key.

• Store login passwords, secure notes, and per-record TOTP secrets together
• Every secret is written with an automatic backup copy and recovered transparently if the primary is ever lost
• Secrets are read with caching bypassed and the in-memory buffer zeroed after use

Because the password/notes manager and 2FA vault are available right after Unlock (no mount required), Sundy doubles as a fast offline password manager even when you don't need the disk.

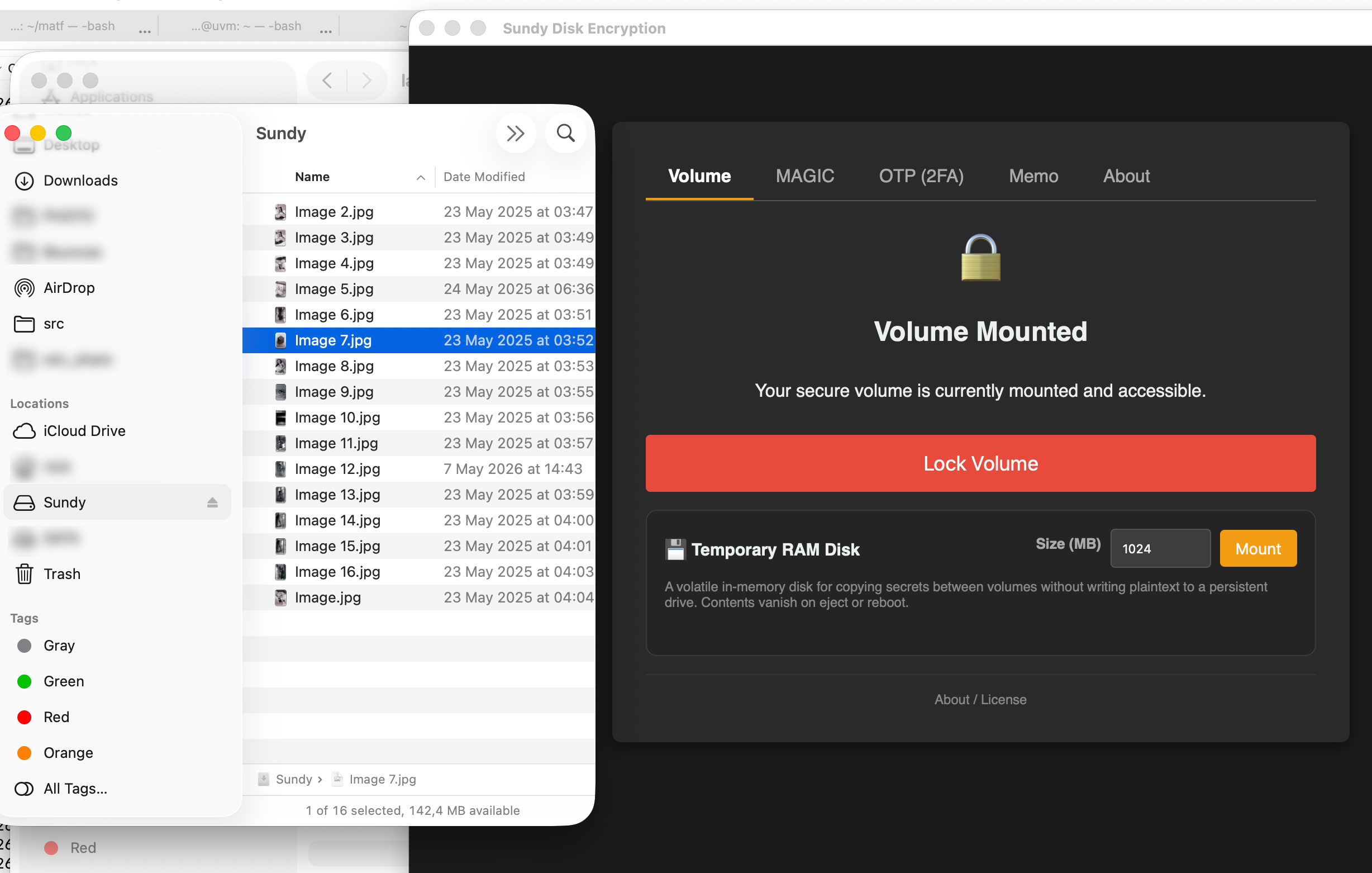

Virtual Disk

When you unlock a vault and choose Mount drive, Sundy exposes a virtual block device through Apple's FSKit framework (macOS 26+ on Apple Silicon) and attaches it with the system disk tools — the same real-disk experience as before, without macFUSE or other add-ons.

Supported Filesystems

• APFS: Recommended for macOS (supports snapshots, encryption)
• ExFAT: Cross-platform compatible
• HFS+: Legacy macOS support

Working with Files

The mounted disk works exactly like any other disk. Use Finder, drag & drop files, open documents in any application. All reads and writes are encrypted/decrypted transparently.

Sundy vs. VeraCrypt, Cryptomator, and FileVault

Sundy is built for a different threat model than traditional encrypted containers, cloud folder encryption, or full-disk encryption. VeraCrypt, Cryptomator, and FileVault are useful tools, but Sundy focuses on hidden multi-password vaults, decoy access, offline OTP/Memo storage, and carriers that avoid obvious encryption signatures.

Threat Model

Sundy is designed for users who need encrypted storage that remains private even when the storage carrier is copied, inspected, synced, backed up, or handed over under pressure. Its core goal is not only to protect plaintext data, but also to make unopened vaults difficult or impossible to prove from the carrier alone.

What Sundy Protects Against

• Offline inspection of the carrier: A block file is randomized, directory storage uses hashed encrypted blocks, and WAV/AIFF carriers hide encrypted data in low-bit audio noise. There are no Sundy headers, magic bytes, visible allocation tables, or plaintext filenames that identify hidden vaults.
• Forced disclosure of one password: Every password opens its own vault. Revealing one password does not reveal a master index, a list of other vaults, or proof that other passwords exist.
• Brute-force password guessing: Passwords are stretched with PBKDF2-HMAC-SHA256 using 5,000,000 iterations, making each guess deliberately expensive. MAGIC Unlock can turn a remembered folder/file tree into a high-entropy key that is impractical to brute force without the exact files and structure.
• Silent corruption and bit rot: Authenticated clusters use keyed HMAC-SHA256. When redundant copies exist, bad or tampered copies are detected and a good copy can be used instead.
• Casual cloud, backup, or border inspection: A backed-up carrier reveals only random-looking data or normal-looking audio noise. Different passwords can present believable decoy contents while real vaults remain undisclosed.

What Sundy Does Not Protect Against

• A compromised Mac: Malware, screen recorders, keyloggers, memory capture tools, or a hostile administrator running while the vault is unlocked can observe secrets like any other local app.
• Weak or reused passwords: If a password is guessable, leaked elsewhere, or typed into an untrusted machine, Sundy cannot make it strong after the fact. Use strong unique passwords or MAGIC Unlock inputs you can reproduce safely.
• Operational mistakes: Re-encoding a WAV/AIFF carrier, normalizing audio, saving it through an editor, deleting carrier files, forgetting the noise depth K, or losing MAGIC key files can permanently destroy access.
• Live observation: If someone watches you unlock, sees your open vault, photographs your screen, or captures Finder while a disk is mounted, they can learn what is visible in that session.
• Legal or physical coercion: Sundy can provide decoy vaults and deniable carriers, but it cannot guarantee safety against every real-world demand, policy, or physical threat.

Security Assumptions

Recommended Practice

• Keep separate passwords in separate Gen3 buckets when you want maximum isolation between vaults.
• Use believable decoy vaults only with contents you are comfortable revealing.
• Unmount the disk when you only need OTP or Memo, and lock the vault when finished.
• Store backup copies of critical carriers and MAGIC key files offline, but protect those backups like the originals.
• For audio carriers, record the exact noise depth K and never re-encode, normalize, trim, or edit the carrier after creation.

Moving Data Safely

Sundy gives you two ways to move secrets without ever exposing plaintext to persistent storage.

Copy to a New Password

Each 2FA account and each notes folder has a Copy to new password action. It re-writes that item into a different password's hidden vault inside the same storage file. The dialog asks for the target password twice (there is no "wrong password" feedback in the multi-password model, so the confirmation guards against typos). Nothing is ever overwritten — a name clash is renamed Finder-style ("Name copy", "Name copy 2", …). Works on all three backends.

Temporary RAM Disk

From the Volume tab you can mount a volatile, RAM-backed scratch disk. While it's mounted you can export your entire 2FA or notes dataset to it from one vault and import it into another. The hand-off lives only in memory and vanishes when the RAM disk is ejected or the machine reboots — it never lands on persistent storage. Imports merge rather than overwrite, renaming any clashes Finder-style.

Backup & Recovery

Backing Up Your Storage

Simply copy your storage file (or directory, or audio carrier) to a backup location. The entire vault is self-contained.

MAGIC Unlock Backup

If you unlock with MAGIC, keep safe copies of every file you use as a key and remember the exact folder structure. Without the same files and layout, the key cannot be reproduced and the vault cannot be opened.

Command Line

Sundy includes a command-line interface for advanced users and headless automation. (The CLI mounts the disk immediately after unlocking, then holds it until you press Ctrl+C.)

# Create a new volume (always fully randomized)
sundy --create --file /path/to/volume.dat --size 1024 --randomize

# Unlock and mount a volume (Gen3 layout by default)
sundy --unlock --file /path/to/volume.dat --mount /Volumes/Sundy

# Unlock using the Flat-32 compatibility layout (32 copies)
sundy --unlock --gen2 --file /path/to/volume.dat --mount /Volumes/Sundy

# Open an older 1 KiB-cluster volume
sundy --unlock --legacy --file /path/to/old-volume.dat --mount /Volumes/Sundy

# Password is prompted interactively (hidden input; not accepted on the command line)
sundy --cli --unlock --file volume.dat --mount /Volumes/Sundy

Troubleshooting

Disk Won't Mount

• Confirm you are on macOS 26+ (Apple Silicon)
• Ensure Sundy Extension is enabled under System Settings → General → Login Items & Extensions → File System Extensions
• Install Sundy to /Applications (not a build folder or external drive)
• Launch Sundy as your normal user — do not run mount operations with sudo
• Try restarting your Mac if the extension was just installed or updated

Slow Performance

• Ensure you have an active license (unlicensed mode is intentionally slow)
• Use SSD storage for your encrypted files
• Increase cache size in settings for better performance

MAGIC Unlock Not Opening the Vault

• Rebuild the tree exactly: the same folder names, nesting, file names, and file contents
• Drag in real files (not aliases or shortcuts) so their contents are read
• Remember that even a one-byte change to any file produces a different key
• Hidden entries (names starting with .) are ignored — don't rely on them

Need more help? Contact us at support@sundy.io
